Muncie Exploded View

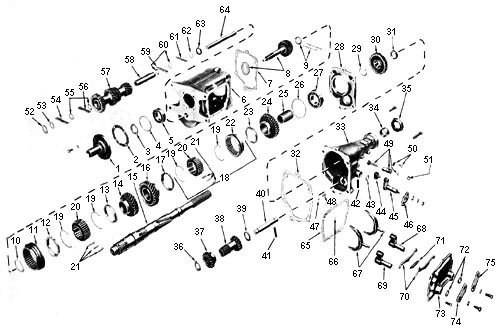

This is the Muncie 4-Speed transmission in an exploded view detailing the location of each part and its description.
# |
Description |
1 |
Bearing Retainer |
2 |
Gasket |
3 |
Bearing Retainer Nut |
4 |
Bearing Snap Ring |
5 |
Main Drive Gear Bearing |
6 |
Transmission Case |
7 |
Rear Bearing Retainer Gasket |
8 |
Main Drive Gear Oil Slinger |
9 |
Bearing Rollers (17) and Cage |
10 |
Snap Ring |
11 |
3rd & 4th Speed Clutch Sliding Sleeve |
12 |
4th Speed Gear Synchronizing Ring |
13 |
3rd Speed Gear Synchronizing Ring |
14 |
3rd Speed Gear |
15 |
Mainshaft |
16 |
2nd Speed Gear |
17 |
2nd Speed Gear Synchronizing Ring |
18 |
1st & 2nd Speed Clutch Assembly |
19 |
Clutch Key Spring |
20 |
Clutch Hub |
21 |
Clutch Plates |
22 |
1st & 2nd Speed Clutch Sliding Sleeve |
23 |
1st Speed Gear Synchronizing Ring |
24 |
1st Speed Gear |
25 |
Sleeve |
26 |
Rear Bearing Snap Ring |
27 |
Rear Bearing |
28 |
Rear Bearing Retainer |
29 |
Selective Fit Snap Ring |
30 |
Reverse Gear |
31 |
Speedometer Drive Gear |
32 |
Rear Bearing Retainer to Case Extension Gasket |
33 |
Case Extension |
34 |
Extension Busing |
35 |
Rear Oil Seal |
36 |
Reverse Idler Front Thrust Washer (Tanged) |
37 |
Reverse Idler Gear (Front) |
38 |
Reverse Idler Gear (Rear) |
# |
Description |
39 |
Flat Thrust Washer |
40 |
Reverse Idler Shaft |
41 |
Reverse Idler Shaft Roll Pin |
42 |
Reverse Shifter Shaft Lock Pin |
43 |
Reverse Shifter Shaft Seal |
44 |
Reverse Shift Fork |
45 |
Reverse Shifter Shaft and Detent Plate |
46 |
Reverse Shifter Lever |
47 |
Reverse Shifter Shaft Ball |
48 |
Reverse Shifter Shaft Ball Detent Spring |
49 |
Speedometer Driven Gear, Sleeve and Seal |
50 |
Retainer and Bolt |
51 |
"O" Ring Seal |
52 |
Countergear Thrust Washer |
53 |
Countergear Spacer Washers |
54 |
Bearing Rollers (28) |
55 |
Countergear Spacer Washers |
56 |
Bearing Rollers (28 |
57 |
Countergear |
58 |
Countergear Roller Spacer |
59 |
Bearing Rollers (28) |
60 |
Countergear Spacer Washers |
61 |
Bearing Rollers (28) |
62 |
Countergear Spacer Washers |
63 |
Countergear Thrust Washer |
64 |
Countershaft |
65 |
Gasket |
66 |
Detent Cams Retainer Ring |
67 |
Forward Speed Shift Forks |
68 |
1st & 2nd Speed Gear Shifter Shaft Assembly |
69 |
3rd & 4th Speed Gear Shifter and Detent Plate |
70 |
Detent Cams |
71 |
Detent Cam Spring |
72 |
Lip Seals |
73 |
Transmission Side Cover |
74 |
3rd & 4th Speed Shifter Lever |
75 |
1st & 2nd Speed Shifter Lever |
